Certification : CE, ISO9001: 2000, SGS
MOQ : 1
Model NO. : HD-LDB350-1
Material : Q345b (Sgc490)
Boom Length : 11000mm
Arm Length : 9000mm
Max Dig Depth : 14500mm
Max Extensive Scope : 19600mm
Max Dig Height : 14920mm
Folding Height : 3210mm
Bucket Capacity : 0.5m3
Excavator Tonnage : 35ton
Total Length : 15380mm
Weight : 6000kg
Boom Length Range : 7100-13000mm
Arm Length Range : 5900-11000mm
Max Dig Depth Range : 9000-18000mm
CE Approved Excavator Long Reach Boom for Hitachi ZX360 excavator
We can customize according to your excavator model
We have detailed dimension of all kinds of excavators
The include parts as following:
If you need new arm cylinder and counter weight, we also can prepare for you.
We also can customize all kinds of long boom as per your any requirements.
Original excavator performance, made by high strength steel plate, improves operation scope.
Applicable for all the make and model of excavator.
Many different material such as Q345B,Q690D,Weldox are optional to suit to your application
If possible visit china, welcom to our factory have a look. It will be our big pleasure to service for you.
| MODEL | LDB120 | LDB200-1 | LDB200-2 | LDB300 | LDB350-1 | LDB350-2 | LDB450 |
| boom length(mm) | 7100 | 8220 | 10000 | 10000 | 11000 | 12000 | 13000 |
| arm length ( mm) | 5900 | 7160 | 8000 | 8000 | 9000 | 10000 | 11000 |
| Weight(kg) | 3000 | 4000 | 4200 | 5200 | 6000 | 6500 | 7000 |
| Max dig depth(mm) | 9000 | 11340 | 12200 | 12200 | 14500 | 16100 | 18000 |
| Max. extensive scope(mm) | 12500 | 15100 | 17600 | 17600 | 19600 | 21600 | 23600 |
| Max. dig height(mm) | 11300 | 12510 | 13500 | 13720 | 14920 | 16100 | 17300 |
| folding height(mm) | 2900 | 2980 | 3040 | 3210 | 3210 | 3400 | 3400 |
| bucket capacity(m3) | 0.3 | 0.5 | 0.4 | 0.4 | 0.5 | 0.6 | 0.6 |
| Suit Excavator tonnage(ton) | 12 | 20 | 20 | 30 | 35 | 35 | 45 |
|
|

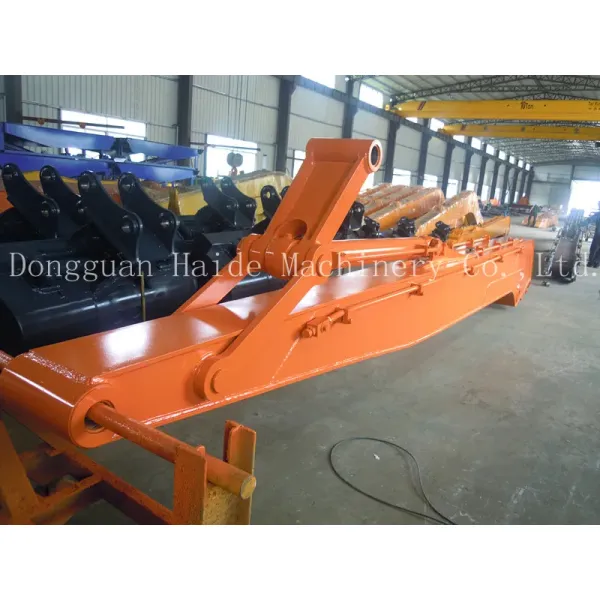

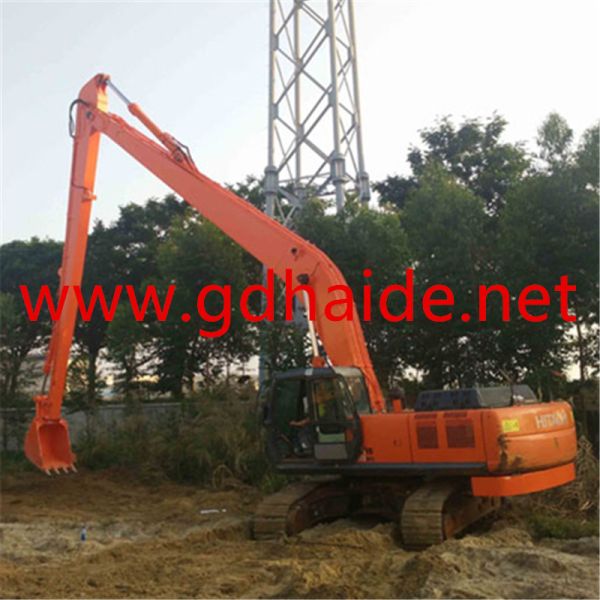

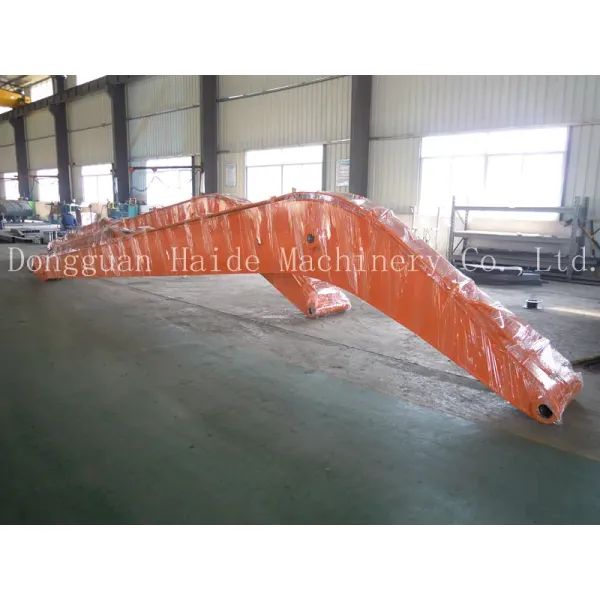

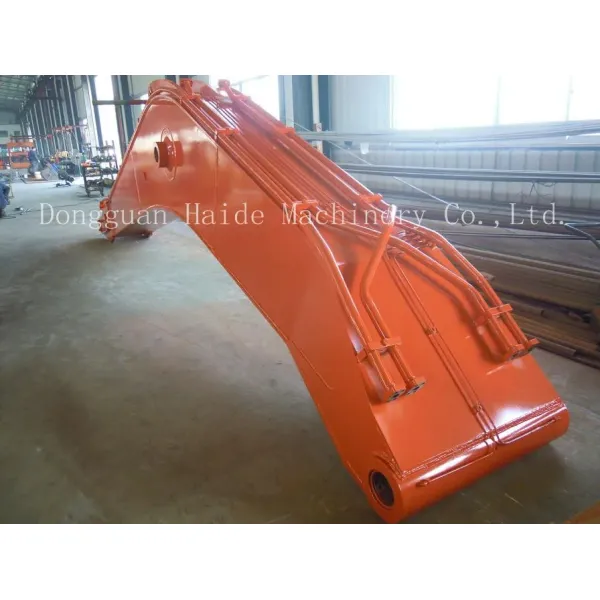

Ce Approved Excavator Long Reach Boom for Hitachi Zx360 Excavator Images |
