VOLVO EC210/EC460/EC480 Long Reach Boom and Arm with Q345B & Q690D Material 11000mm Boom Length and 9000mm Arm Length

Name: VOLVO EC210EC460EC480 Long Reach Boom and Arm with Q345B amp Q690D Material 11000mm Boom Length and 9000mm Arm Length
Brand: VOLVO EC210/EC460/EC480
Price: 1 USD

Quality VOLVO EC210/EC460/EC480 Long Reach Boom and Arm with Q345B & Q690D Material 11000mm Boom Length and 9000mm Arm Length for sale

Place of Origin : Guangdong, China

Brand Name : VOLVO EC210/EC460/EC480

Model Number : EC210/EC460/EC480

Certification : ISO9001:2008 and CE

MOQ : 1

Material : Q345B&Q690D

Surface finish : Sand-blasted and painted

Boom length : 11000mm

Arm length : 9000mm

Bucket volume : 1.0m3

Total length : 13000-24000mm

Weight : 3000-7000kg

Max dig depth : 9000-18000mm

Max extensive scope : 12500-23600mm

Max dig height : 11300-17300mm

Folding height : 2900-3400mm

Excavator tonnage : 12-45 ton

Welding gas : 80% Argon, 20% CO2

Bushing material : Copper with graphite

Seam preparation : 45 degree tapered

Contact Now

Product Description

VOLVO EC210/EC460/EC480 long reach boom and arm on sale

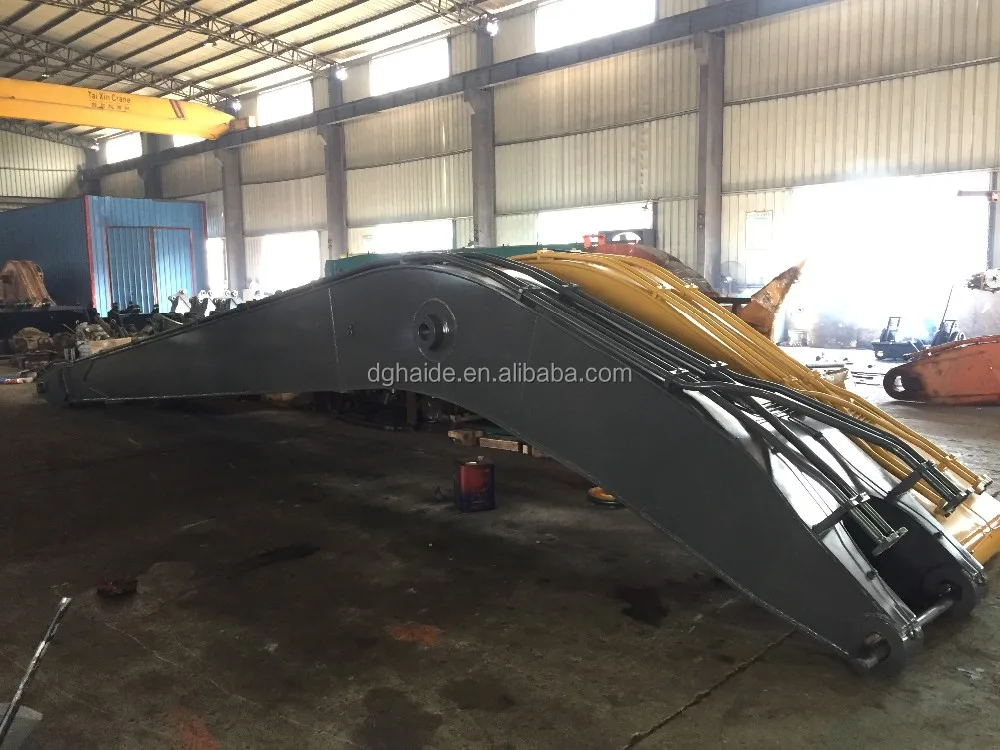

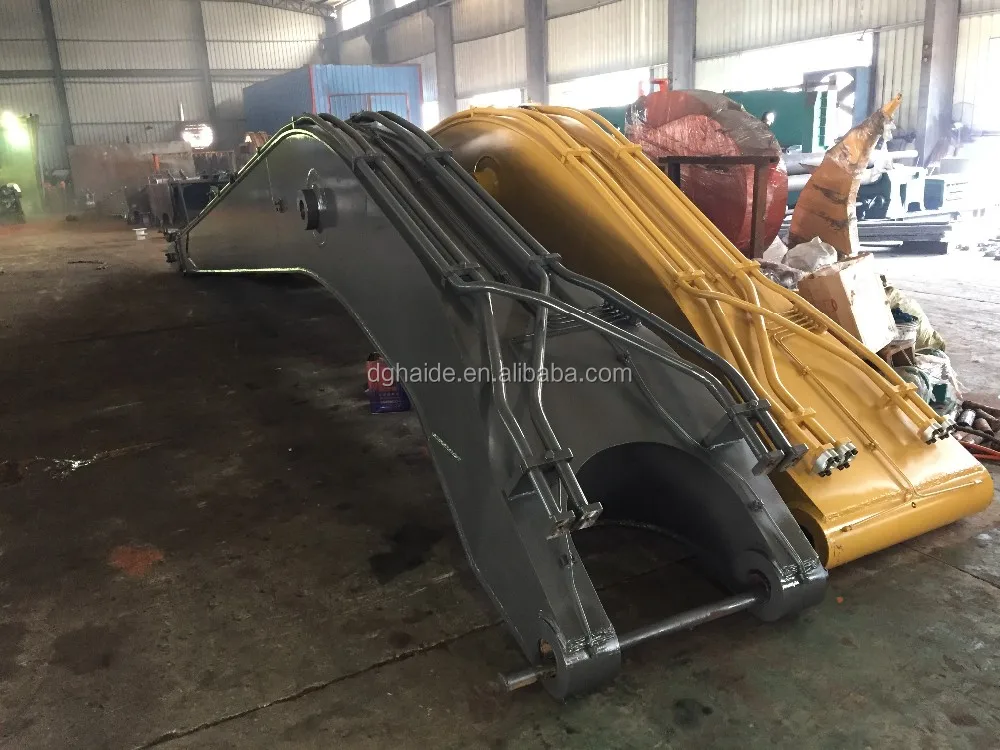

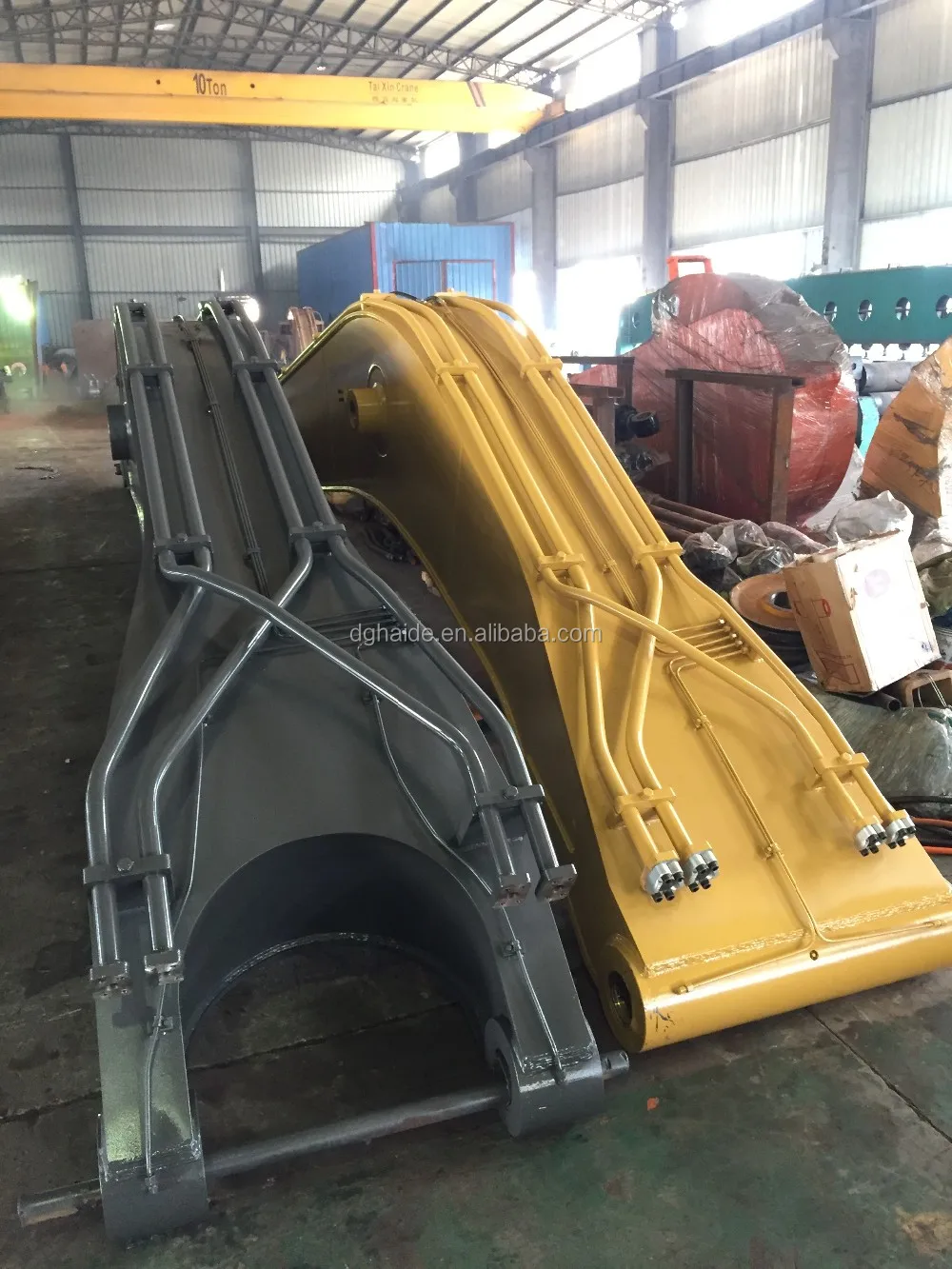

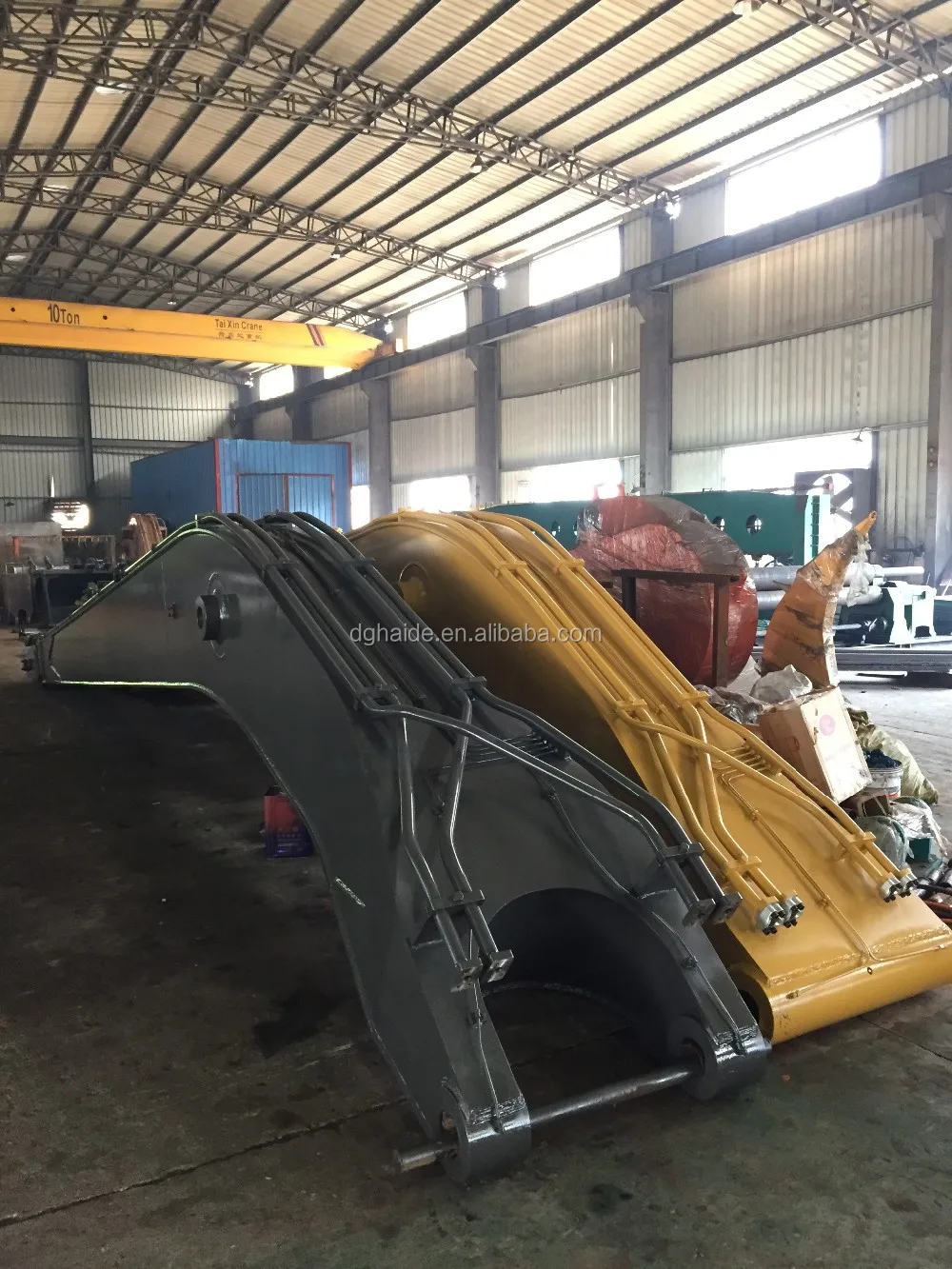

Excavator long reach boom and arm

1.Applicable for all the make and model of excavator.

2.Standard supply include:bucket,linkage,bucket cylinder, 4oil pipe/hose,6pins,lubricating system

3.Many different material such as Q345B,Q690D,Weldox are optional to suit to your application.

4.Big boom can be two jointed pcs to make it fittable into container to save shipping cost.

5.All the seam are 45 degree tapered before welding.

6.Six month warranty

7.Some parts can be consolidated using thicker plate or overlapping another plate for heavy-duty application.

8.Boom cylinder and arm cylinder can also be supplied if customer want.

9.Extra pipeline can be added to suit to some extra application.

10.Biggest long boom we have done is 32m long boom for Hitachi EX3500.

Model	LDB120	LDB200	LDB220	LDB300	LDB350	LDB400	LDB450
Total length (mm)	13000	15380	15380	18000	20000	22000	24000
Weight (kg)	3000	4000	4200	5200	6000	6500	7000
Max dig depth (mm)	9000	11340	11370	13000	15000	16500	18000
Max extensive Scope (mm)	12500	15100	15100	17600	19600	21600	23600
Max dig height (mm)	11300	12510	12610	13720	14920	16100	17300
Folding height (mm)	2900	2980	3040	3210	3210	3400	3400
Bucket volume (m3)	0.3	0.4	0.4	0.4	0.5	0.6	0.6
Excavator Tonnage(ton)	12	20	22	30	35	40	45

production processes

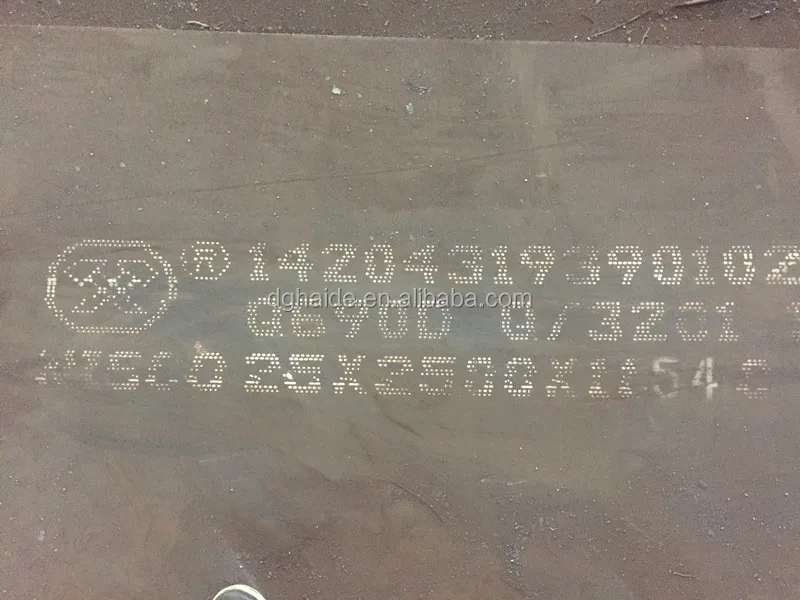

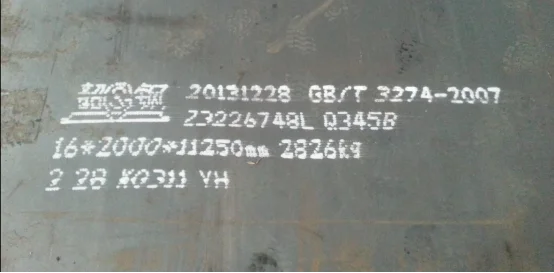

1.material :Q345B and Q690D:

The top and bottom use Q690D steel,Other use Q340B steel.

2.wilding : Welded with mixed gas between argon and carbon dioxide. Argon content:80%.

Carbon dioxide content:20%

3.bushing: we use copper bushing with graphite.

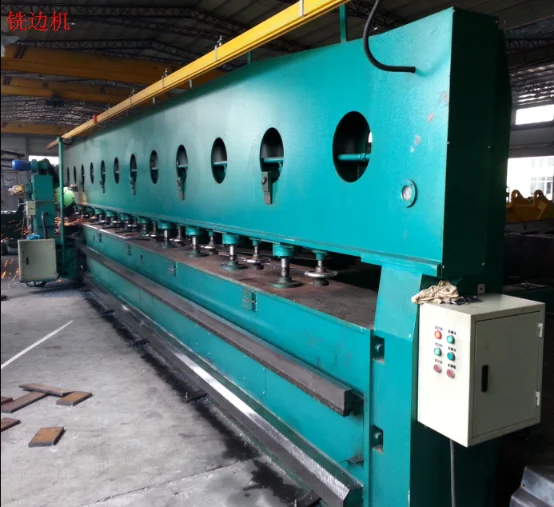

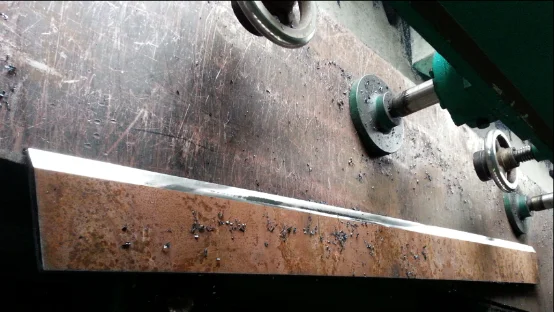

4.To adopt milling machines to prepare strip edges and groove to give good

condition for forming and welding.
